The hydraulic oil filter element is a mesh made of multi-layer metal stamping, which is manufactured through special lamination and vacuum sintering processes. It is a new type of filter material with high mechanical strength and overall rigidity. The overall performance is significantly better than other products

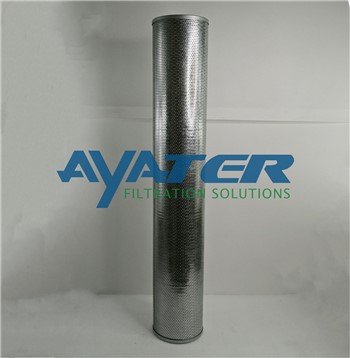

KF6036-05 filter element is made of single or multi-layer metal mesh and filter material, the number of layers and the mesh of the wire mesh are determined according to different conditions of use and use, high heart rate, high pressure, good straightness, stainless steel material, without any burrs, to achieve the perfect filtration effect.
These parameters are for your reference only. If there exist some errors on this page, you can
send the questions to our salespeople and they will help you solve them
|
product Attribute |
Specifications |
|
Outside Diameter： |
6.06 inches |
|
Inside Diameter： |
2.63 inches |
|
Length: |
36 inches |
|
Weight: |
8.9 pounds |
|
Mean Efficiency: |
5 |
|
Absolute Efficiency: |
15 |
|
Dirt Holding Capacity: |
400 (Apparent Dirt Capacity Grams AC Fine Test Dust @ 25 psid) |
|
Minimum Collapse Pressure: |
75 psid |
|
Maximum Operating Temperature: |
250 F / 120 C |
|
Replacement Pressure PSID: |
25 psid / 1.76 kg/cm2 |
|
Gasket Material: |
Nitrile |
|
Flow Direction: |
Outside – In |
|
Filter Type: |
Particulate |
|
Flow Rate (per element): |
95 GPM at 500 SSU (with 5lb pressure drop) |
|
Application: |
Mineral base oil or fuel (diesel or jet) |
